SolarUrban System

SolarUrban Roadway / Parking / Area Solar LED Lighting System

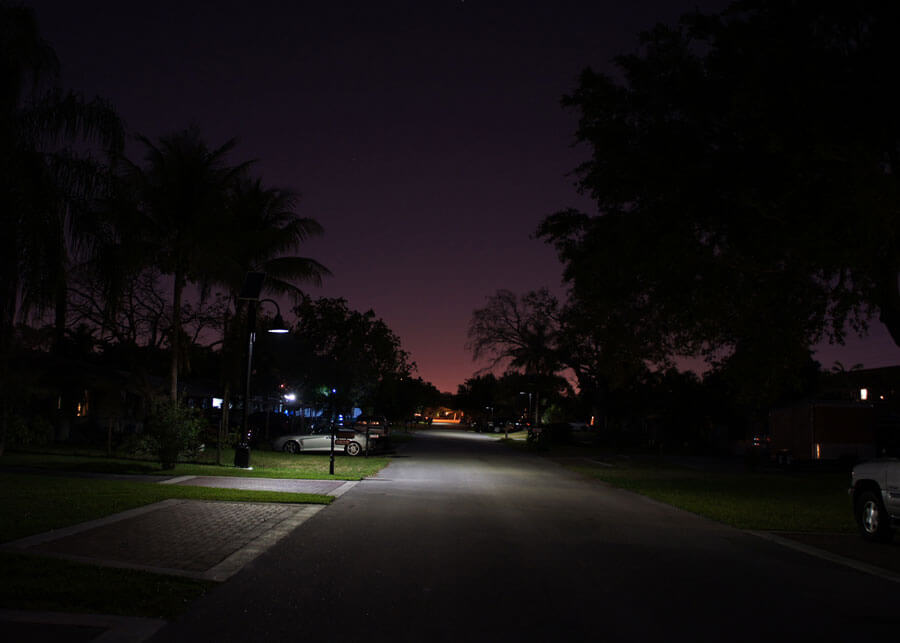

The SolarUrban system is a complete system used for streets, roadways, parking lots, walkways, and area lighting projects. The Urban fixture is an efficient decorative style fixture and provides great light output with multiple distribution patterns. This fixture works best for applications with a mounting height of 15' to 25' providing even illumination on the ground. The Urban fixture is also dark sky friendly.
Specifications     Get A Quote

The SolarUrban high powered LED solar lighting system comes complete with solar power assembly, fixture, bracket and all mounting hardware to attach to a pole. SEPCO can also provide a pole to meet wind load specifications.



The SolarUrban solar power assembly ranges from 30 Watts to 550 Watts with the size of the battery assembly allowing for a minimum of five days autonomy. The solar power assembly is sized according to installation location and takes into consideration local weather conditions.

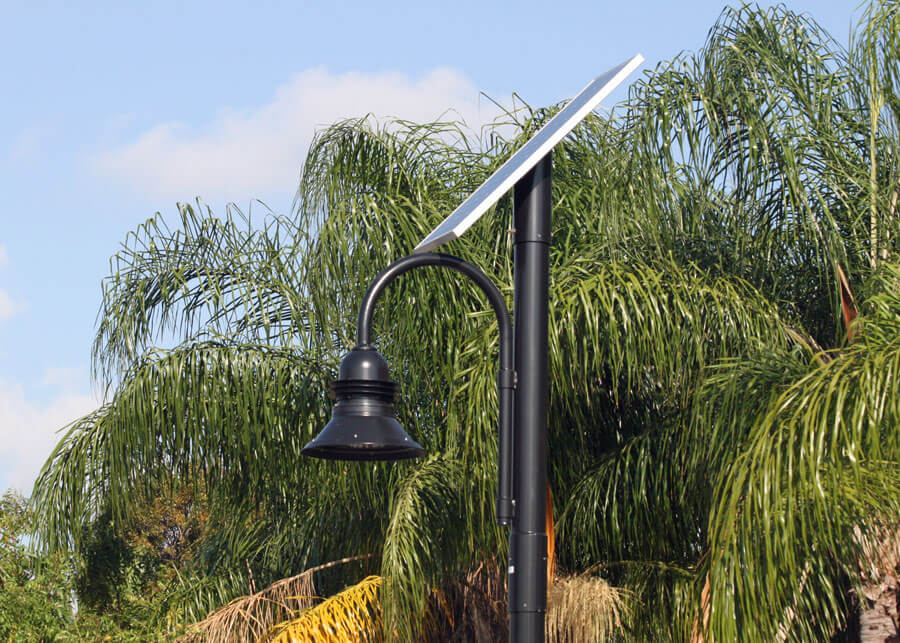

The Urban fixture is a decorative pendant style fixture and comes complete with LEDs and driver used to operate from the solar charged batteries. The SolarUrban ranges from 10 to 55 Watts and comes with Type II, III, IV and V Distribution patterns, as well as 3K, 4K and 5K color temperatures.



The SolarUrban's fixture bracket can either be the RB Railroad Bracket 34" high and 24" wide or the PB Pierwalk Bracket 25.5" high and 23.5" wide, allowing for pendent style fixture mounting. The fixture mounts below the solar panel at the required mounting height for the application.



The SolarUrban system mounts to any round pole with a minimum diameter of 4", allowing the solar to face south while not restricting the direction of fixture installation. The system can be purchased complete with a pole for mounting the solar lighting system. Poles are available in aluminum, steel, fiberglass composite, or concrete and are anchor base or direct burial. All poles provided by SEPCO meet local AASHTO wind load requirements.
